32.768kHz有源晶振
| 型號 | 外部尺寸[ mm ] | 輸出 | 頻率范圍 | 電源電壓 | 溫偏@工作溫度[ ppm /℃] | 規格書 |
|---|---|---|---|---|---|---|
| TG-3541CE (TCXO) |
3.2x2.5x1.0 | CMOS | 32.768kHz | 1.5V~5.5V | XA: ±3.4 / -40~+85 XB: ±5.0 / -40~+85 XA / XB: ±8.0 / +85~+105 |
 |
 TG-3541CEA (TCXO) (AEC-Q100) |
|
|||||
| SG-3031CM | 3.2x2.5x0.9 | 1.2V~5.5V | 5 +/-23 / @ +25 工作溫度： -40 to +105 |
|
||
SG-3031CMA (AEC-Q100) |
|

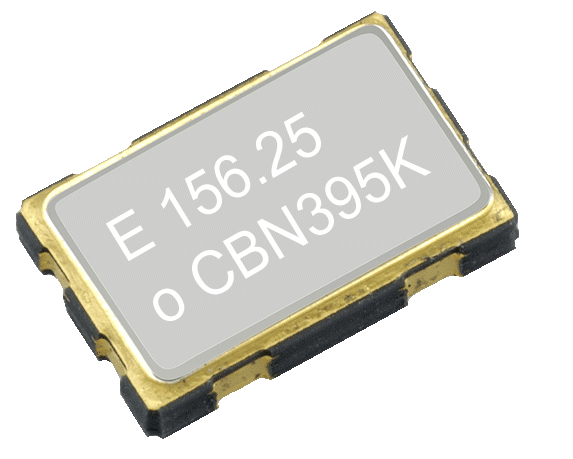

MHz晶體振蕩器
| 型號 | 外部尺寸 [ mm ] |
輸出 | 頻率范圍 [ MHz ] |
電源電壓 [ V ] Typ. |
頻率公差 [ x10^-6 ] |
工作溫度 [ °C ] |
選型資料t Full Data Sheet |
|---|---|---|---|---|---|---|---|
| SG2016CBN | 2.0×1.6 | CMOS | 75MHz ~ 170MHz (5個標準頻率) |
1.8 ~ 3.3 | ±15 ±20 |
-40 ~ +105 | |
| ±25 ±30 |
-40 ~ +125 | ||||||
| ±50 ±55 |
-40 ~ +125 | ||||||
| SG2016CAN | 2.0×1.6 | 4MHz ~ 72MHz (20個標準頻率) |
1.8 ~ 3.3 | ±25 | -20 ~ +75 | |
|
| ±50 | -40 ~ +85 | ||||||
| ±50 | -40 ~ +105 | ||||||
SG2016CAA |
2.0×1.6 | 1.2MHz ~ 75MHz | 1.8 ~ 3.3 | ±50 | -40 ~ +85 | |
|
| -40 ~ +105 | |||||||
| ±100 | -40 ~ +105 | ||||||
| -40 ~ +125 | |||||||
| SG2520CBN | 2.5×2.0 | 75MHz ~ 170MHz (5個標準頻率) |
1.8 ~ 3.3 | ±15 ±20 |
-40 ~ +105 | |
|
| ±25 ±30 |
-40 ~ +125 | ||||||
| ±50 ±55 |
-40 ~ +125 | ||||||
SG2520CAA |
2.0×1.6 | 1MHz ~ 75MHz | 1.8 ~ 3.3 | ±50 | -40 ~ +105 | |
|
| ±100 | -40 ~ +125 | ||||||
| SG-210STF | 2.5×2.0 | 4MHz ~ 72MHz (20個標準頻率) |
1.8 ~ 3.3 | ±25 | -20 ~ +75 | |
|
| ±50 | -40 ~ +85 | ||||||
| ±50 | -40 ~ +105 | ||||||
| SG3225CAN | 3.2×2.5 | 4MHz ~ 72MHz (20個標準頻率) |
1.8 ~ 3.3 | ±25 | -20 ~ +75 | |
|
| ±50 | -40 ~ +85 | ||||||
| ±50 | -40 ~ +105 | ||||||
| SG5032CAN | 5.0×3.2 | 4MHz ~ 72MHz (20個標準頻率) |
1.8 ~ 3.3 | ±25 | -20 ~ +75 | |
|
| ±50 | -40 ~ +85 | ||||||
| ±50 | -40 ~ +105 | ||||||
| SG5032CCN | 5.0×3.2 | 2.5MHz ~ 50MHz | 5.0 | ±50 | -20 ~ +75 | |
|
| ±50 | -40 ~ +85 | ||||||
| SG7050CAN | 7.0×5.0 | 4MHz ~ 72MHz (20個標準頻率) |
1.8 ~ 3.3 | ±25 | -20 ~ +75 | |
|
| ±50 | -40 ~ +85 | ||||||
| ±50 | -40 ~ +105 | ||||||
| SG7050CCN | 7.0×5.0 | 2.5MHz ~ 50MHz | 5.0 | ±50 | -20 ~ +75 | |
|
| ±50 | -40 ~ +85 | ||||||
| SG2016EHN | 2.0×1.6 | LV-PECL | 2.5MHz ~ 500MHz | 2.5 3.3 |
±20 | -40 ~ +85 | |
| ±20 | -40 ~ +105 | ||||||
| SG2016VHN | 2.0×1.6 | LVDS | 2.5MHz ~ 500MHz | 1.8 2.5 3.3 |
±20 | -40 ~ +85 | |
| ±20 | -40 ~ +105 | ||||||
| SG2016HHN | 2.0×1.6 | HCSL | 2.5MHz ~ 500MHz | 2.5 3.3 |
±20 | -40 ~ +85 | |
| ±20 | -40 ~ +105 | ||||||
| SG2016EGN | 2.0×1.6 | LV-PECL | 25MHz ~ 500MHz | 2.5 3.3 |
±25 | -40 ~ +85 | |
| ±50 | -40 ~ +85 | ||||||
| ±25 | -40 ~ +105 | ||||||
| ±50 | -40 ~ +125 | ||||||
| SG2016VGN | 2.0×1.6 | LVDS | 25MHz ~ 500MHz | 1.8 2.5 3.3 |
±25 | -40 ~ +85 | |
| ±50 | -40 ~ +85 | ||||||
| ±25 | -40 ~ +105 | ||||||
| ±50 | -40 ~ +125 | ||||||
| SG2016HGN | 2.0×1.6 | HCSL | 25MHz ~ 500MHz | 2.5 3.3 |
±25 | -40 ~ +85 | |
| ±50 | -40 ~ +85 | ||||||
| ±25 | -40 ~ +105 | ||||||
| ±50 | -40 ~ +125 | ||||||
| SG2520EHN | 2.0×1.6 | LV-PECL | 25MHz ~ 500MHz | 2.5 3.3 |
±20 | -40 ~ +85 | |
| ±20 | -40 ~ +105 | ||||||
| SG2520VHN | 2.0×1.6 | LVDS | 25MHz ~ 500MHz | 1.8 2.5 3.3 |
±20 | -40 ~ +85 | |
| ±20 | -40 ~ +105 | ||||||
| SG2520HHN | 2.0×1.6 | HCSL | 2.5MHz ~ 500MHz | 2.5 3.3 |
±20 | -40 ~ +85 | |
| ±20 | -40 ~ +105 | ||||||
| SG2520EGN | 2.0×1.6 | LV-PECL | 2.5MHz ~ 500MHz | 2.5 3.3 |
±25 | -40 ~ +85 | |
| ±50 | -40 ~ +85 | ||||||
| ±25 | -40 ~ +105 | ||||||
| ±50 | -40 ~ +125 | ||||||
| SG2520VGN | 2.0×1.6 | LVDS | 2.5MHz ~ 500MHz | 1.8 2.5 3.3 |
±25 | -40 ~ +85 | |
| ±50 | -40 ~ +85 | ||||||
| ±25 | -40 ~ +105 | ||||||
| ±50 | -40 ~ +125 | ||||||
| SG2520HGN | 2.0×1.6 | HCSL | 2.5MHz ~ 500MHz | 2.5 3.3 |
±25 | -40 ~ +85 | |
| ±50 | -40 ~ +85 | ||||||
| ±25 | -40 ~ +105 | ||||||
| ±50 | -40 ~ +125 | ||||||
| SG3225EEN | 3.2×2.5 | LV-PECL | 2.5MHz ~ 500MHz | 2.5 3.3 |
±25 | -40 ~ +85 | |
| ±50 | -40 ~ +85 | ||||||
| ±100 | -40 ~ +85 | ||||||
| ±50 | -40 ~ +105 | ||||||
| ±100 | -40 ~ +105 | ||||||
| SG5032EEN | 5.0×3.2 | LV-PECL | 200.1MHz ~ 500MHz | 2.5 3.3 |
±25 | -40 ~ +85 | |
| ±50 | -40 ~ +85 | ||||||
| ±100 | -40 ~ +85 | ||||||
| ±50 | -40 ~ +105 | ||||||
| ±100 | -40 ~ +105 | ||||||
| SG7050EEN | 7.0×5.0 | LV-PECL | 25MHz ~ 500MHz | 2.5 3.3 |
±25 | -40 ~ +85 | |
| ±50 | -40 ~ +85 | ||||||
| ±100 | -40 ~ +85 | ||||||
| ±50 | -40 ~ +105 | ||||||
| ±100 | -40 ~ +105 | ||||||
| SG3225VEN | 3.2×2.5 | LVDS | 25MHz ~ 500MHz | 2.5 3.3 |
±25 | -40 ~ +85 | |
| ±50 | -40 ~ +85 | ||||||
| ±100 | -40 ~ +85 | ||||||
| ±50 | -40 ~ +105 | ||||||
| ±100 | -40 ~ +105 | ||||||
| SG5032VEN | 5.0×3.2 | LVDS | 200.1MHz ~ 500MHz | 2.5 3.3 |
±25 | -40 ~ +85 | |
| ±50 | -40 ~ +85 | ||||||
| ±100 | -40 ~ +85 | ||||||
| ±50 | -40 ~ +105 | ||||||
| ±100 | -40 ~ +105 | ||||||
| SG7050VEN | 7.0×5.0 | LVDS | 25MHz ~ 500MHz | 2.5 ~ 3.3 | ±25 | -40 ~ +85 | |
| ±50 | -40 ~ +85 | ||||||
| ±100 | -40 ~ +85 | ||||||
| ±50 | -40 ~ +105 | ||||||
| ±100 | -40 ~ +105 | ||||||
| SG3225EAN | 3.2×2.5 | LV-PECL | 73.5MHz ~ 700MHz | 2.5 ~ 3.3 | ±50 | -20 ~ +70 | |
| ±50 | -40 ~ +85 | ||||||
| ±30 | -20 ~ +70 | ||||||
| ±30 | -40 ~ +85 | ||||||
| ±20 | -20 ~ +70 | ||||||
| SG5032EAN | 5.0×3.2 | LV-PECL | 73.5MHz ~ 700MHz | 2.5 ~ 3.3 | ±50 | -20 ~ +70 | |
| ±50 | -40 ~ +85 | ||||||
| ±30 | -20 ~ +70 | ||||||
| ±30 | -40 ~ +85 | ||||||
| ±20 | -20 ~ +70 | ||||||
| SG7050EAN | 7.0×5.0 | LV-PECL | 73.5MHz ~ 700MHz | 2.5 ~ 3.3 | ±50 | -20 ~ +70 | |
| ±50 | -40 ~ +85 | ||||||
| ±30 | -20 ~ +70 | ||||||
| ±30 | -40 ~ +85 | ||||||
| ±20 | -20 ~ +70 | ||||||
| SG3225VAN | 3.2×2.5 | LVDS | 73.5MHz ~ 700MHz | 2.5 ~ 3.3 | ±50 | -20 ~ +70 | |
| ±50 | -40 ~ +85 | ||||||
| ±30 | -20 ~ +70 | ||||||
| ±30 | -40 ~ +85 | ||||||
| ±20 | -20 ~ +70 | ||||||
| SG5032VAN | 5.0×3.2 | LVDS | 73.5MHz ~ 700MHz | 2.5 ~ 3.3 | ±50 | -20 ~ +70 | |
| ±50 | -40 ~ +85 | ||||||
| ±30 | -20 ~ +70 | ||||||
| ±30 | -40 ~ +85 | ||||||
| ±20 | -20 ~ +70 | ||||||
| SG7050VAN | 7.0×5.0 | LVDS | 73.5MHz ~ 700MHz | 2.5 ~ 3.3 | ±50 | -20 ~ +70 | |
| ±50 | -40 ~ +85 | ||||||
| ±30 | -20 ~ +70 | ||||||
| ±30 | -40 ~ +85 | ||||||
| ±20 | -20 ~ +70 | ||||||
| SG3225HBN | 3.2×2.5 | HCSL | 100MHz ~ 325MHz | 2.5 3.3 |
±50 | -40 ~ +85 | |
| ±100 | -40 ~ +85 | ||||||
| ±100 | -40 ~ +105 |
